Specifications:

• Easily level your TV even after installation

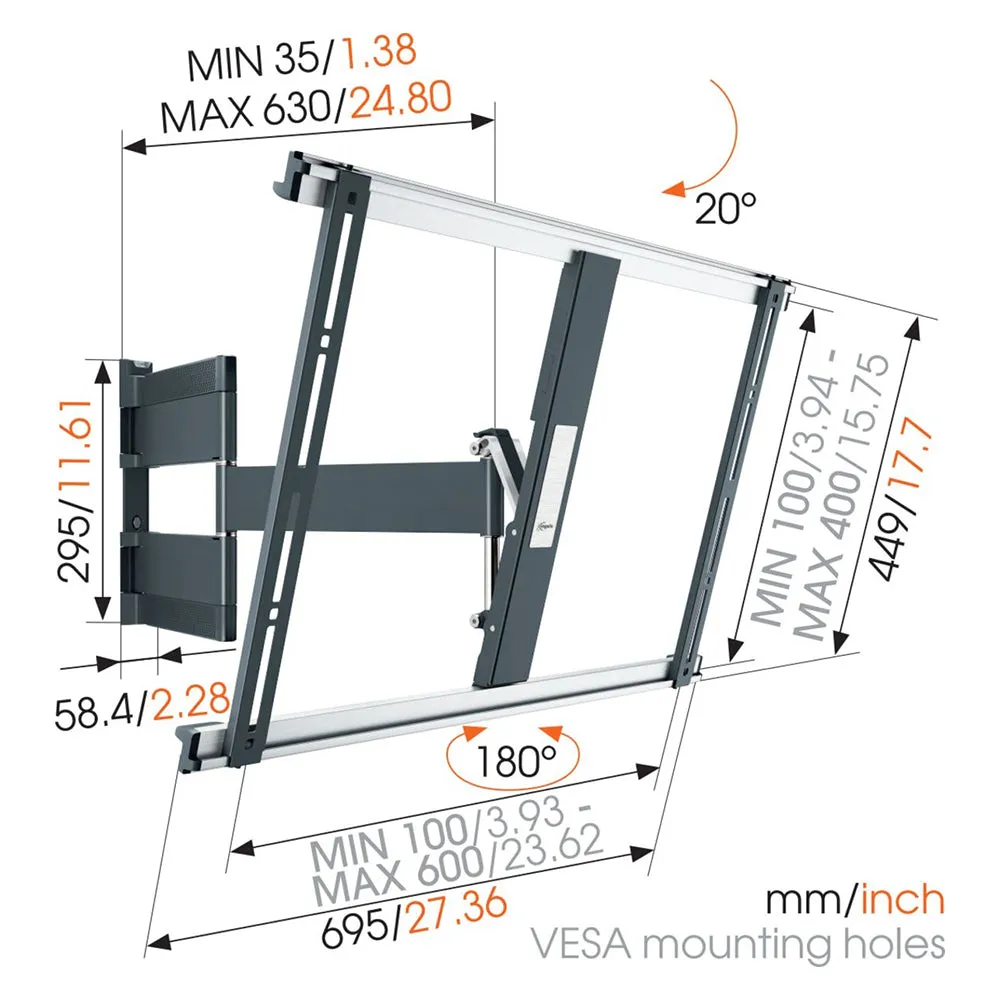

• Min. screen size (inch): 40

• Max. screen size (inch): 65

• Min. vertical hole pattern (mm): 100

• Max. vertical hole pattern (mm): 400

• Min. horizontal hole pattern (mm): 100

• Max. horizontal hole pattern (mm): 600

• Min. distance to the wall (mm): 35

• Max. distance to the wall (mm): 630

• Max. weight load (kg): 25

• Turn: Up to 180°

• Tilt: Tilt up to 20°

• Number of pivot points: 3

• Number of arms: 2

• TÜV certified: Yes

• Guarantee: Lifetime

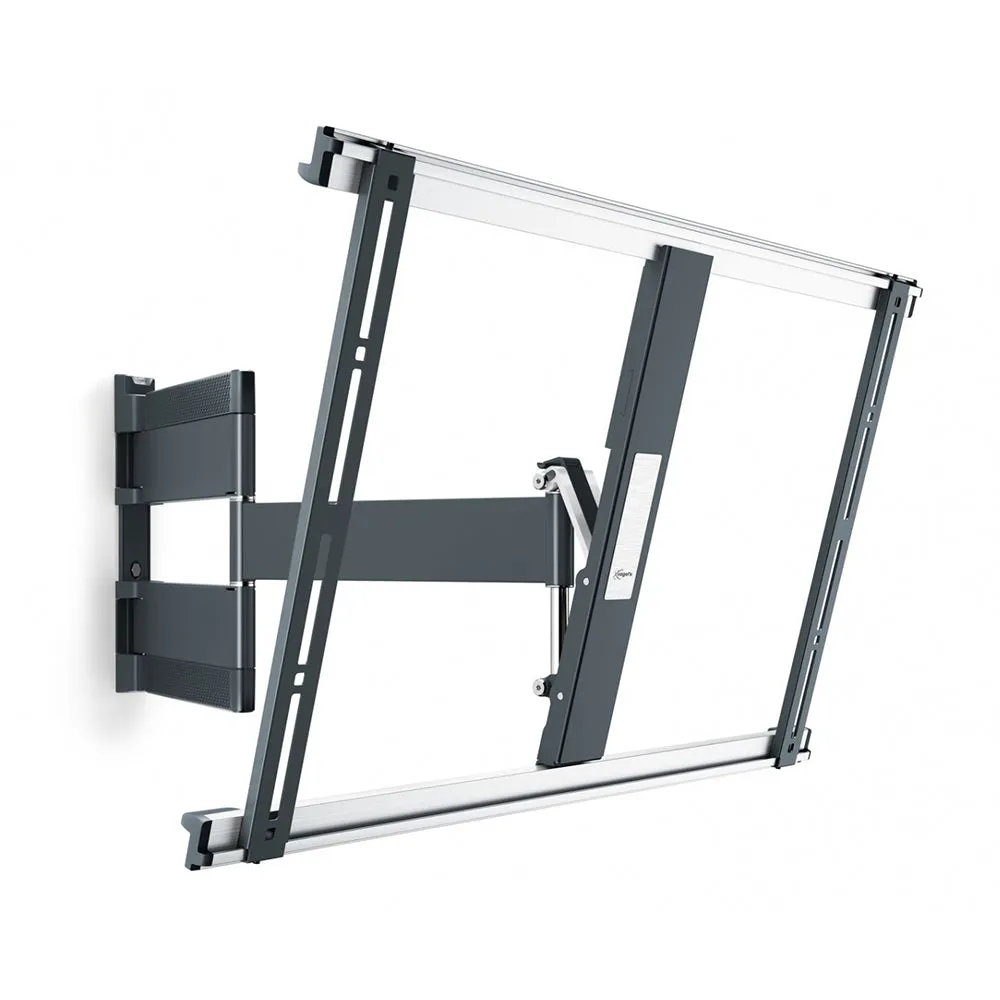

• The THIN 545 full motion TV bracket has a maximum weight capacity of 25 kg. Almost any TV, from 40" to 65" (102-165 cm), can be mounted flat against the wall with the THIN 545. The maximum turning angle is 180° and the max. tilting angle is 20°. The distance from the wall is 35 mm
• Mount your TV as flat against the wall as possible
• Mount your TV only 3,5 cm from the wall
• Smoothly turn your TV up to 180°
• Guide your cables
