Info

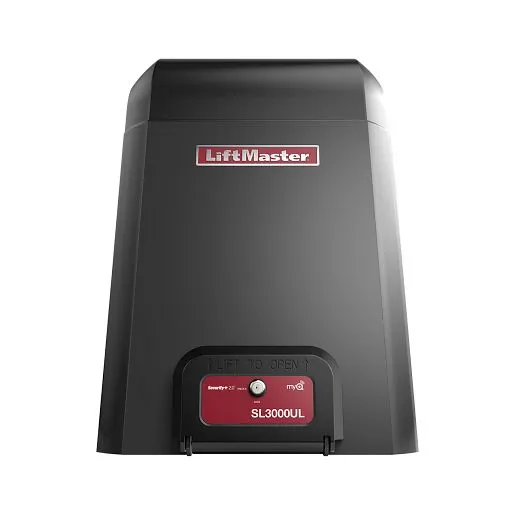

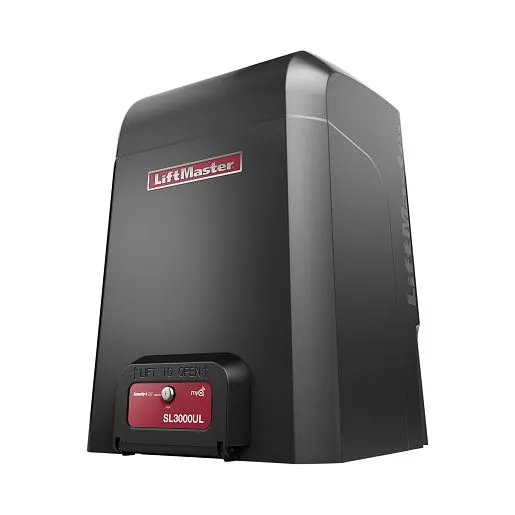

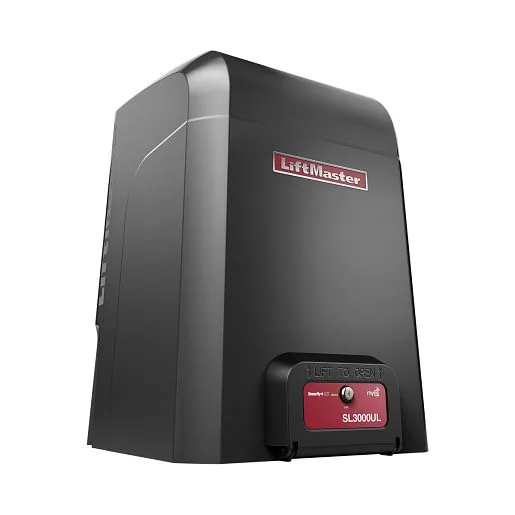

SL3000UL features a continuous- duty high temperature motor Ideal for heavy-traffic applications.
Reliable
Legacy elite heavy-duty commercial gear-driven transmission provides unsurpassed reliability.
Limit switch design provides precision limit accuracy and reliability.
Surge suppression provides industrial surge and lightning protection against strikes up to 50 feet away.
Warranty 5 years commercial, 7 years residential.
Smart
myQ® Technology enables you to securely control and monitor your gate operator from anywhere.
Wireless dual-gate communication synchronizes gate opening/ closing and eliminates expensive driveway trenching costs.
Safe and Secure
Security 2.0® safeguards access to property with an encrypted signal to offer extended range with Security 2.0.
Inherent reversing sensor detects obstructions and reverses gate when closing or stops/reverses the gate when opening.
Pre-motion warning alarm activates on-board alarm 3 seconds prior to gate motion.
Manual disconnect when unlocked allows gate to be operated manually.
Quick close and anti-tailgate quickly secure property, preventing unauthorized access.
UL® Listed Gate operators with monitored safety entrapment protection devices.
Included Accessories:
LMRRUL Monitored Retro Reflective Photo Eye enhanced retro-reflective photo eye now with heater and wider polarized beam, engineered to stay aligned; max. Range: 50 ft.
S505AL Monitored Small Profile resistive edge pressure-sensitive edge stops and/or reverses gate when obstructed.
Specs
Mechanics
Continuous-Duty Motor with Class H Insulation is rated for high-cycle, high-temperature applications (available in 1/2 and 1 HP)
Operator Duty Rating: Continuous Duty
Wormgear Reduction: Commercial oil-bath gearbox providing 30:1 Wormgear Reduction
Chain: #41 Black Oxide (25ft. Supplied)
Power
115V Single-Phase
Accessory Power: 24VDC 500mA output
2 Auxiliary Outlets
Optional Kit (3PHCONV) to convert an input voltage of 208/240/480/575VAC to an output Voltage of 115VAC
Commercial-Grade Design
Chassis: constructed with 1/4 in. gold zinc-plated steel for rust prevention
Cover: High-Density, UV-Resistant , 1-Piece Polyethylene plastic for excellent heat and corrosion resistance
UL® Usage Classification: I, II, III and IV
Operator weight: 140 lbs.
Dimensions
Height: 26.51”
Width: 18.14”
Depth: 20.39”
Temperature Specifications
Without heater: -4°F (-20°C ) to 140°F (60°C
With optional heater: (HTRNB) -40°F (-40°C ) to 140°F (60°C)
Gate Travel Speed
12” per second
Standard Features
External Alarm Reset Button instantly resets the built-in safety alarm siren
Mechanical Limit System maintains accurate gate position throughout gate travel, even after using manual disconnect
Monitored Safety Inputs 3 main board, 3 expansion boards
Security 2.0® On-Board Radio Receiver up to 50 remote controls (unlimited with 811LM/813LM).
Led Diagnostic Display simplifies installation and troubleshooting
Programmable Auxiliary Relays make adding additional features easy
HomeLink® Compatible
Compatibility Bridge™ (not included) necessary for certain vehicles. Visit bridge.liftmaster.com to find out if a Bridge is needed.
HomeLink® is a registered trademark of Gentex Corporation.
