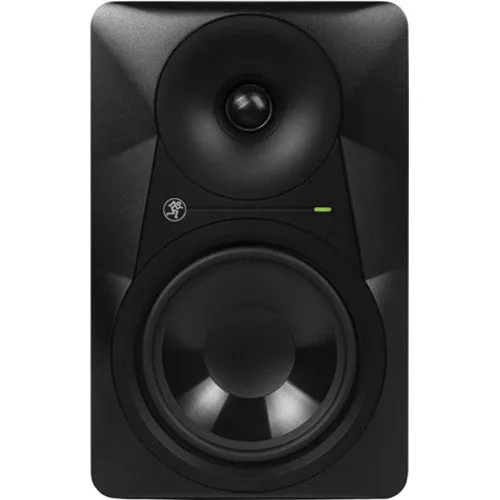

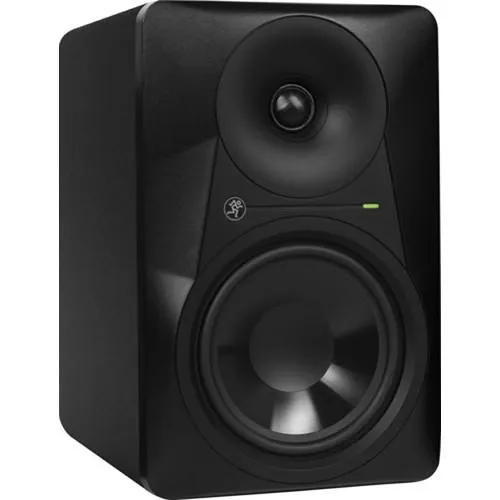

The Mackie MR624 Studio Monitor is a powered 6.5" 2-way reference speaker that is designed for mixing and monitoring in your home or project studio. It features a logarithmic waveguide system that aims to minimize reflections and diffractions for a wider sweet spot, plus a custom-tuned rear port to help ensure an even bass response.
The MR624 is equipped with matched amps and drivers for an optimized 65W Class-A/B bi-amplified system. The speakers can also be optimized to your mixing environment with the adjustable acoustic space filters designed to maintain a flat response in typical placement configurations. Additionally, a high-frequency filter applies a boost or cut to compensate for particularly bright- or dull-sounding rooms.
The MR624 has been designed with flexibility in mind, featuring XLR, TRS and RCA monitor inputs. The speaker has been housed in an all-wood cabinet that has been treated with acoustic absorption material for a tighter response. Additionally, the MRS10 studio subwoofer can be added for a more powerful, extended low end.
Features
-
- Designed for superior mix translation and accuracy for professional results in any studio
- Equipped with Mackie’s proven logarithmic waveguide design
- Ultra-wide dispersion for enhanced stereo imaging and listening sweet spot
- Precise acoustic alignment offers incredibly balanced sound across the entire frequency spectrum
- 1” silk dome tweeter provides fast transient response for detailed high end and vocal clarity
- 6.5” polypropylene woofer delivers responsive, dynamic low frequency response
- 65-watts of bi-amplified Class A/B amplification
- Frequency Response: 38 Hz – 20 kHz
- Optimize MR monitors for your mixing environment
- Adjustable acoustic space filters maintain flat response in typical placement configurations
- HF filter applies boost or cut to compensate for particularly dull- or bright-sounding rooms
- Professional all-wood cabinet design built to last and look great in any studio
- Custom-designed internal bracing adds stiffness for reduced distortion and enhanced low-frequency response

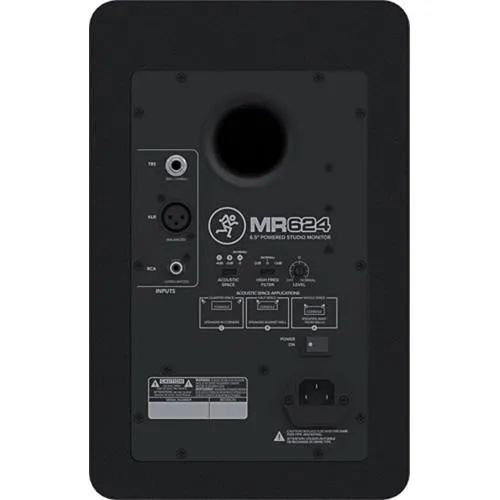

- Flexible inputs for simple connection to almost any audio source
- Acoustically optimized with sound-tightening acoustic absorption material
- Add the optional MRS10 studio subwoofer for powerful, deep low-frequency extension, well suited for electronic music, hip-hop and more
Specifications
Frequency Response 45 Hz to 20 kHz, (-3 dB)
38 Hz to 20 kHz, (-10 dB)SPL 105 dB SPL @ 3.3' / 1.0 m ( 4 dBu into balanced input) Maximum SPL 111 dB SPL @ 3.3' / 1.0 m (per pair) Transducer Low Frequency: 6.5" / 165 mm (polypropylene-coated woofer)
High Frequency: 1.0" / 25 mm (silk dome tweeter)Power 65 W Crossover Crossover Frequency: 3 kHz Controls and Processing Power
Level
HF-boost/cut
Acoustic space controlAC Power 100 to 120 VAC Enclosure Rugged all-wood design, internal acoustic absorption material, minimum-diffraction molded baffle, custom-tuned zero-turbulence rear port, logarithmic waveguide, and textured finish
